Product Description

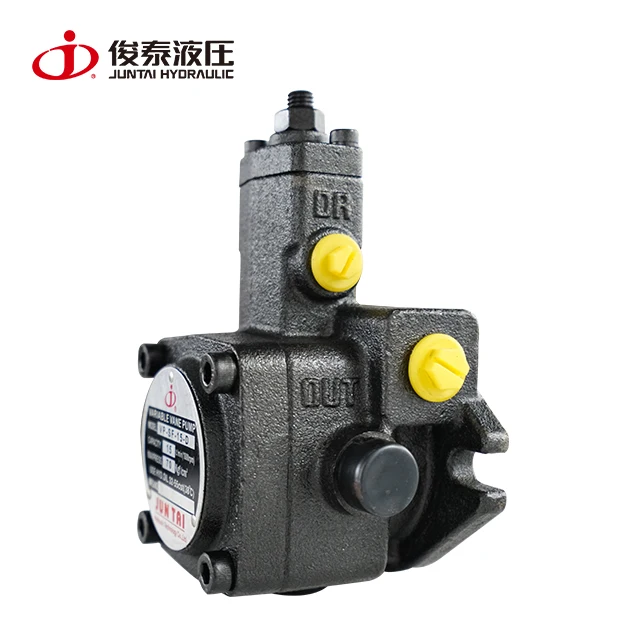

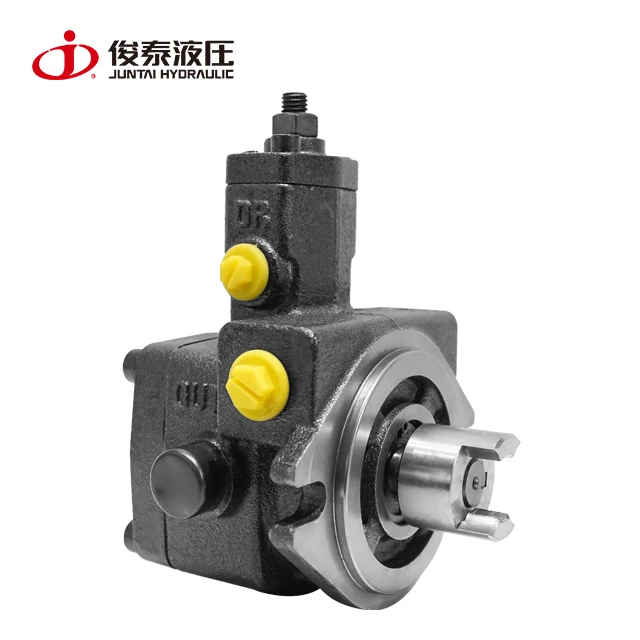

variable displacement vane pump
Characteristic:
1, use precision machining technology, can automaticly adjust displacement and complement under setting pressure. decrease the loss of load power ,high efficiency , low temperature , energy saving.
2, low noise, response promptly, high efficiency and steady operation.
3, simple structure, simple operation, easy to maintain.
4, include adjusting screw, can adjust the displacement and pressure randomly, widely apply for lathe machine and show making machine,etc.
5, long working life, steady structure, small volume, can connect with motor directly, save space, durability and so on.
VP type single pump model description:
Allowed rotating speed:minimum:800r/min,maxmum:1800r/min
Drain oil pipe: drain oil pipe must be installed under the oil level. Pressure should be setted as <0.05MPa; Pipe length should be shorter than 1M, don’t mix with other oil return pipe.
Performance curve:following data based on oil viscosity46 mm2/s(ISOVG-46 temperature 40oC)
VP variable displacement vane pump
Installation drawing
Packaging & Shipping
Packaging: pack one pump in one plastic bag,then put it in one thick paper carton,then heap up them on the plastic pallet, wrap the plastic pallet and cartons with plastic membrane then bind the cartons with plastic packing belt.
Delivery date:about 10-20 days after receipt your 30%T/T for deposit
Trade term: FOB SHENZHEN,or FCA or C&F or CIF
Shipping for sample and bulk productions:
send sample by international Express(Fedex or UPS or TNT or DHL),sample freight paid by collect.
For bulk production, shipped as per customer's instruction,shipping process all fllow INCOTERM regulations.
Product packing details:
style# | carton dimension of each item | net weight | gross weight | quantity |
VP-SF-12<span style="margin: 0px; padding: 0px; font-size: 9pt; border: 0px; box-sizing: border-box; vertical-align: baseline; font-style: inherit; font-variant: inherit; font-stretch: inherit; line-height: 18px; font-family: inherit; font-optical-sizing: inherit; font-kerning: inherit; font-feature-settings: inhe
|
