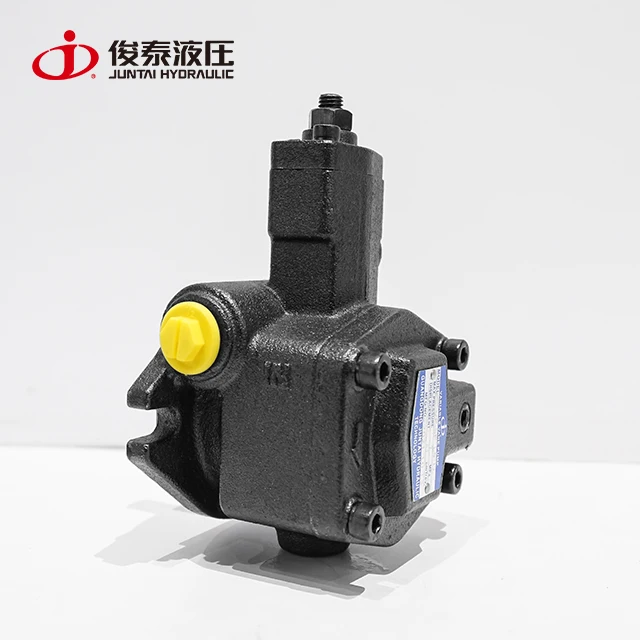

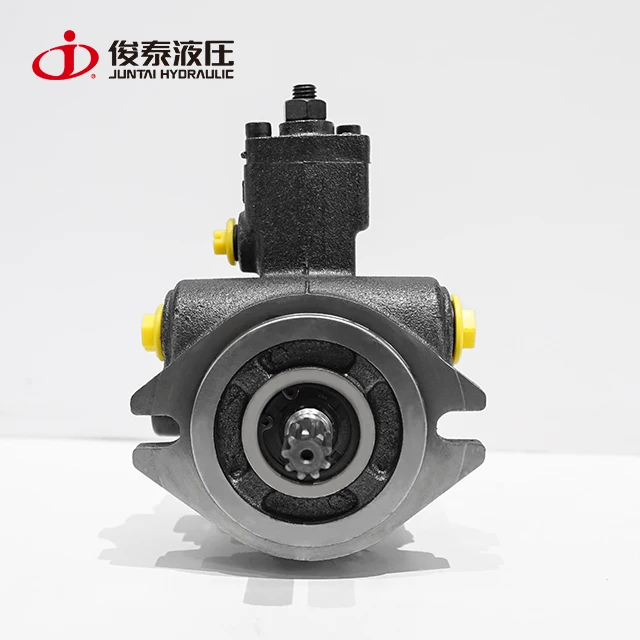

VPT20 Hydraulic Variable Vane Pump  For Hyhraulic System

How to packing ?

Frequently Asked Questions (FAQ) :

1, What's the standard hydraulic oil and its working temperature ?

Under 70 bar pressure, use hydraulic oil viscosity 30-50CST(ISO VG-46) in temperature 40℃. Working temperature 15-16℃ .

2, How to adjust the pressure through the pressure adjustment screw ?

clockwise rotation, increase pressure; counter-clockwise rotation, decrease pressure.

3,How to adjust the displacement through the displacement adjustment screw ?

clockwise rotation, decrease the displacement  ; counter-clockwise rotation, increase displacement.

4, What's the possible reason if there is no oil output from delivery port ?

 1),the shaft rotating direction is wrong.

 2), sauction oil pipe was jamed.

 3), vane was locked in the rotor,can't slip out from rotor.
